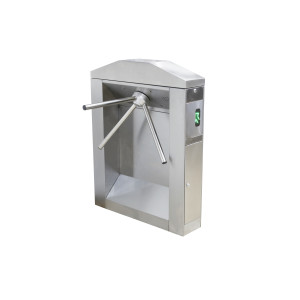

بوابة دخول وخروج T300 MI Makim

بوابات دخول وخروج مترو  T300 MI Makim صناعة تركى

Control /Operation Voltage
:
24VDC  +-%20

Power Consumption
:
30W

Passing Block
:
with controlled turning tripod arms positioned with 120 degrees

Tripod Locking
:
With 24 V DC selenoids; locks when the selenoids are pulled. (In Emergency, system  is shut down and  turnstiles provide free  passing in both directions.)

Passing Direction Control
:
Free bi-directional entry-exit control

Tripod Position Dedection
:
Direction of the tripod position with two microswitches.

Motion Control
:
When the cycle starts to one direction, the reverse is blocked and after a half turn the rest of the cycle is completed, automatically and smoothly by a hydraulic shock absorber.

Installation
:
Simple & easy installation with a special pedestal.

Operation Temperature
:
– 20° C – + 70° C

Indicators
:
One light indicator on both directions (*/X)

Dimensions
:
 300x810x1034 mm

Weight
:
 50 kg

Optional Accesories
:
Drop-arm, remote control, button unit,card reader,biometric reader.
